ASTM A106 Grade B Pipe `Stainless Steel Alloys

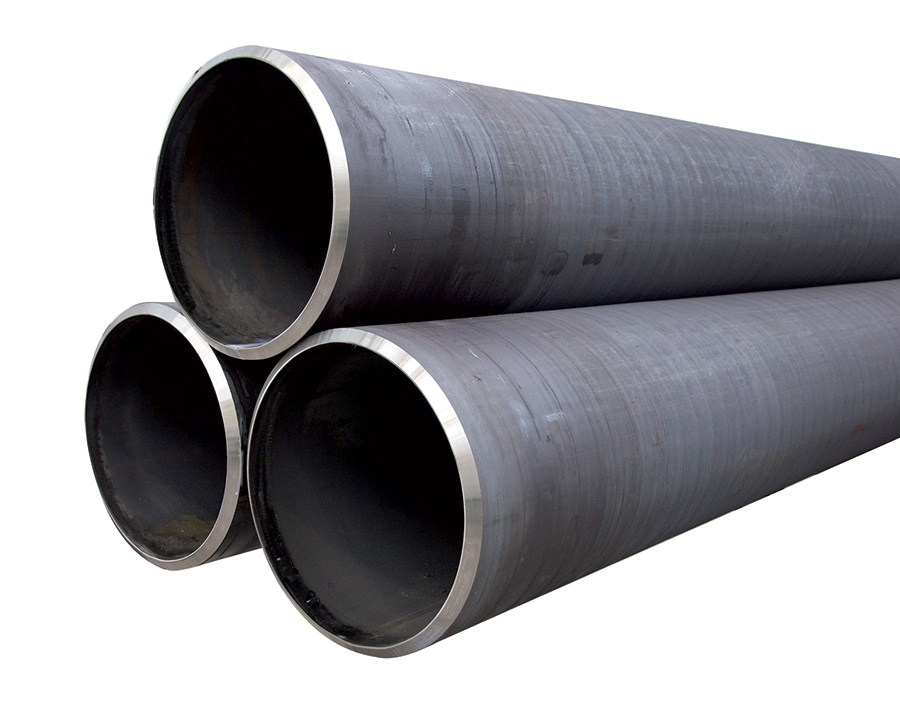

SA106 Grade B Seamless Pipe Supplier, A106 Grade B Welded Pipes Exporter in India
A106 Grade B ERW Pipe Stockist, ASTM A106 GR. B Carbon Steel Pipe
ASTM A106 grade B Pipe is used in power plants, boilers, petrochemical plants, oil and gas refineries, and ships for transporting hot or cold liquids and gasses under high pressures and temperatures.

At Steel Alloys , we supply ASME SA106 grade B pipe that meets the latest chemistry standards. Steel Alloys is the world’s supplier exporter, and wholesaler of ASTM A106 grade B pipes in India and globally.

Here are the available dimensions for A106 pipes:

● NPS (Nominal Pipe Size) from ¼” to 30” diameter
● Schedules 10 through 160, STD, XH, and XXH
● Wall Thickness up to XXH, including:
○ Up to 4” wall thickness in 20” through 24” OD
○ Up to 3” wall thickness in 10” through 18” OD
○ Up to 2” wall thickness in 4” through 8” OD

ASTM A106 Seamless Pressure Pipe covers seamless carbon steel pipe suitable for high-temperature service, allowing for bending, flanging, and similar forming operations. Pipes with NPS 1-1/2″ or below may be hot finished or cold drawn, while NPS 2″ or larger are typically hot finished unless specified otherwise. The weight of each pipe length does not vary more than 10% over or 3.5% under the specified amount. Larger sizes are weighed individually by length.

ASTM A106 Grade B Pipe Composition

ASTM A106 Grade B Pipe Specification

Specialized in Large Diameter ASTM A106 Grade B Pipe
A106 Pipe Dimensions ANSI B 36.10
ASME Standard B36.10M Welded and Seamless Wrought Steel Pipe
Type Seamless / ERW / Welded / Fabricated
Grades ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C
Thickness 3-12mm
A106 Pipe Fittings A106 Carbon Steel Pipe Fittings, Elbows, Tees, Reducers
ASTM A106 B NACE MR0175 NACE MR0175 standard includes ASTM A106 Grade B, A, and C.
A106 pipe and related fittings which are made from the NACE material (complied with NACE MR 0175 or ISO 15156 standard). We call them NACE pipe, or NACE pipe fittings.
SA106 Pipe Standard:ASME SA106, Grade: GR.A,GA.B,GA.C
Tolerance

Cold drawn pipe: +/-0.1mm

Cold rolled pipe: +/-0.05mm
Craft Cold rolled and Cold drawn
Schedules SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
Form Round, Hydraulic Etc
Length Min 3 Meters, Max18 Meters, or according to customer’s requirement
End Plain End, Beveled End, Treaded
Weldolet on a106 pipe 3000# Standard Weight Steel Weldolet
Additional Testing Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR
ANSI Standard B1.20.1 Pipe Threads, General Purpose
Origin European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
ASTM A106 Grade B Seamless Nipples ASTM A106 Grade B Carbon Steel Seamless Nipples
A106 Pipe-Pipe Nipples-End Connections Carbon Steel Pipe Nipples-End Connections for A106 Pipe

Fitting (weldolet) Material for A106 Gr. C Pipe

 Fitting (weldolet) Material for A106 Gr. C Pipe
Size 1/2” NB to 36” NB
Standards ASTM, ASME and API
Applications of A106 Pipe A106 Pipe are mainly used in refineries and plants when gasses or fluids are transported at high temperatures and pressures

A106 pipe material

A106 pipe Quantity Feet, centimeters, or number of lengths
Name of material A106 Seamless or Welded Pipe
A106 pipe Grade Grade A, Grade B, or Grade C
A106 pipe Manufacture Hot-finished or cold-drawn
A106 pipe Size NPS or Outside Diameter and Schedule Number of Average Wall Thickness
Special outside diameter tolerance pipe
Inside diameter tolerance pipe, over 10 in ID
A106 pipe Length Specific or random
Supplementary requirements
Test Report Required
Specification designation
Hydrostatic test
Special requirements

  • ASTM A 106 grade B Seamless Pressure Pipe
    B) Unless otherwise specified by the purchaser, for each reduction of 0.01 % below the specified carbon maximum, an increase of 0.06 % manganese above the specified maximum will be permitted up to a maximum of 1.65 %.

    *ASME SA 106 grade B Seamless Pressure Pipe
    B) For each reduction of 0.01 % below the specified carbon maximum, an increase of 0.06 % manganese above the specified maximum will be permitted up to a maximum of 1.35 %.

SPECIAL STEEL

  • Inconel
  • Incoloy
  • Monel
  • Hastelloy
  • Nickel Alloy
  • Alloy 20
  • 904L stainles Steel
  • Titanium
  • Copper
  • Copper Nickel
  • Nimonic
  • Invar
  • AL6XN
  • Stainless Steel
    • Stainless Steel 304
      • Stainless Steel Pipe
      • Stainless Steel Tube
      • Stainless Steel Tubing

    • Stainless Steel 304L
    • Stainless Steel 304H
    • Stainless Steel 310/S
    • Stainless Steel 310H
    • Stainless Steel 316
    • Stainless Steel 316L
    • Stainless Steel 316Ti
    • Stainless Steel 317/L
    • Stainless Steel 347
    • Stainless Steel 347H
    • Stainless Steel 310
    • Stainless Steel 346L
  • Duplex Steel
  • Carban Steel
  • Alloy Steel
  • Alloy 286

ASTM A106 Grade B Pipe suppliers

A106 CS Seamless Pipe

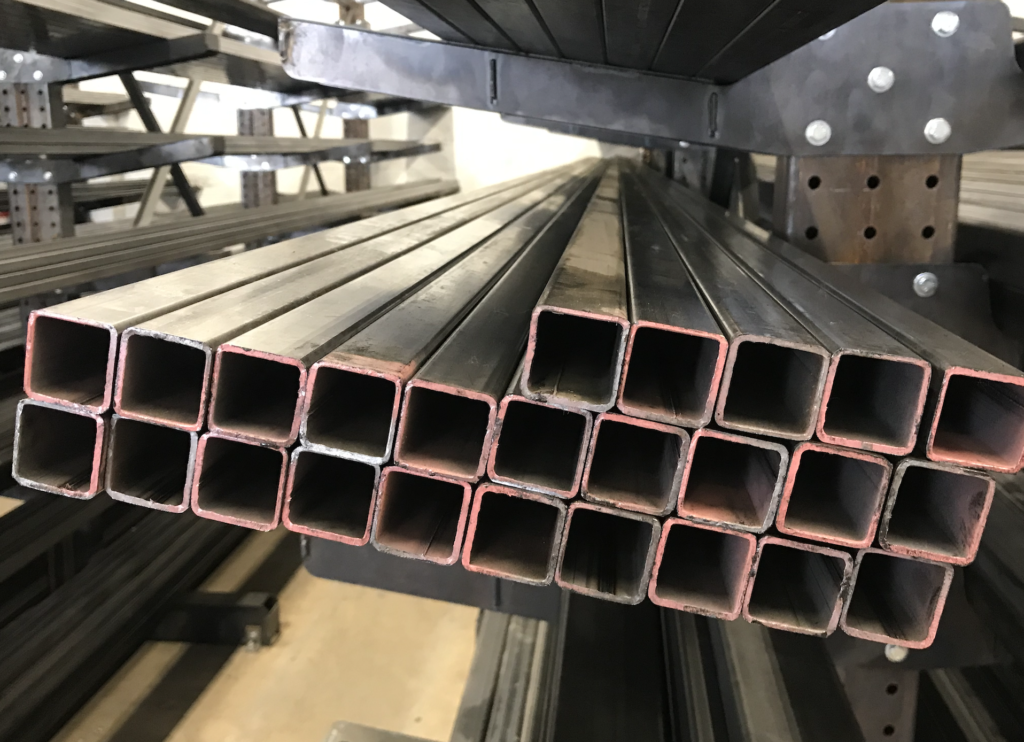

A106 CS Square Pipe

ASTM A106 Carbon Steel Exhaust Pipe

Carbon Steel API5L Flex Pipe

Carbon Steel Weld Pipe

CS Lined Pipe

Carbon Steel Square Pipe (Radius Corners)

Carbon Steel Clad Pipe

Carbon Steel Hollow Pipe

Carbon Steel Rectangle Pipe

Carbon Steel Welded Pipe

Carbon Steel Pipe material

ASTM A106 Grade B Pipe Equivalent

Former
New
Execution
Standard
Material
Standard
Material
Seamless
API 5L
Grade X52
EN 10208-2
L360NB
Seamless
ASTM A333
GRADE 6
EN 10216-4
P265NL
Welded
API 5L
Grade B
EN 10208-2
L245NB
Seamless
ASTM A106
GRADE B
EN 10216-2
P265GH
Seamless
API 5L
Grade B
EN 10208-2
L245NB
Welded
API 5L
Grade X52
EN 10208-2
L360NB
ASTM A106 Grade B Pipe Types Out diameter Wall thickness Length
ASTM A106 Grade B SAW Pipe 16″ NB – 100″ NB As per requirement Custom
ASTM A106 Grade B ERW Pipe (Custom Sizes) 1/2″ NB – 24″ NB As per requirement Custom
ASTM A106 Grade B Welded Pipe (in Stock + Custom Sizes) 1/2″ NB – 24″ NB As per requirement Custom
ASTM A106 Grade B Seamless Pipe (Custom Sizes) 1/2″ NB – 60″ NB SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Custom

ASTM A106 Grade B Pipe Pressure Rating

ASTM A106 Grade B Pipe Pressure Rating

Maximum working pressure of ASTM A106 Grade B Pipe at temperature 400°F

The dimensions – outside pipe diameters and wall thicknesses are according ANSI B36.10.

Maximum Allowable Pressure (psi)
NPS Outside Diameter Schedule
(in) (in) 10 20 30 STD 40 60 XS 80 100 120 140 160 XXS
1/4 0.54 7985 7985 10798 10798
3/8 0.675 6606 6606 9147 9147
1/2 0.84 6358 6358 8575 8575 10908 17150
3/4 1.05 5273 5273 7187 7187 10220 14373
1 1.315 4956 4956 6670 6670 9316 13340
1 1/4 1.66 4133 4133 5638 5638 7380 11276
1 1/2 1.9 3739 3739 5158 5158 7247 10316
2 2.375 3177 3177 4498 4498 7097 8995
2 1/2 2.875 3460 3460 4704 4704 6391 9408
3 3.5 3024 3024 4200 4200 6132 8400
3 1/2 4 2769 2769 3896 3896
4 4.5 2581 2581 3670 3670 4769 5782 7339
5 5.563 2273 2273 3303 3303 4404 5505 6606
6 6.625 2071 2071 3195 3195 4157 5318 6390
8 8.625 1420 1574 1829 1829 2307 2841 2841 3375 4085 4613 5147 4971
10 10.75 1140 1399 1664 1664 2279 2279 2708 3277 3847 4558 5128 4558
12 12.75 961 1268 1441 1560 2160 1922 2644 3244 3843 4324 5042 3843
14 14 875 1092 1313 1313 1533 2079 1750 2625 3283 3829 4375 4921
16 16 766 956 1148 1148 1531 2009 1531 2585 3157 3733 4404 4882
18 18 681 849 1192 1021 1530 2042 1361 2553 3147 3743 4252 4848
20 20 613 919 1225 919 1455 1989 1225 2526 3138 3675 4288 4824
22 22 557 835 1114 835 1949 1114 2506 3063 3619 4176 4733
24 24 510 766 1147 766 1405 1978 1021 2489 3126 3700 4210 4786
30 30 510 817 1021 613 817
32 32 478 766 957 574 1054
34 34 450 721 901 540 992
36 36 425 681 851 510 1021
42 42 583 729 438 875
  • 1 in (inch) = 25.4 mm
  • 1 psi (lb/in2) = 6,894.8 Pa (N/m2) = 6.895×10-2 bar

A106 Pipe Size

ASTM A106 Grade B Pipe Size Chart / A106 Pipe Schedule Chart

ASTM A106 Grade B Pipe Dimensions, NB Size Schedule

NB Size OD 40S 5S 10S S10 S20 S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
1/8” 10.29 1.2 1.73 2.41
1/4” 13.72 1.7 2.24 3.02
3/8” 17.15 1.7 2.31 3.2
15 1/2” 21.34 2.8 1.7 2.1 2.77 3.73 3.73 4.78 7.47
20 3/4” 26.67 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
25 1” 33.4 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
32 1 1/4” 42.16 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
40 1 1/2” 48.26 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
50 2” 60.33 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
65 2 1/2” 73.03 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
80 3” 88.9 5.5 2.1 3.1 5.49 7.62 7.62 11.1 15.2
90 3 1/2” 101.6 5.7 2.1 3.1 5.74 8.08 8.08
100 4” 114.3 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
125 5” 141.3 6.6 2.8 3.4 6.55 9.53 9.53 12.7 15.9 19.1
150 6” 168.3 7.1 2.8 3.4 7.11 10.97 11 14.3 18.3 22
200 8” 219.1 8.2 2.8 3.8 6.4 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
250 10” 273.1 9.3 3.4 4.2 6.4 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
300 12” 323.9 9.5 4 4.6 6.4 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
350 14” 355.6 9.5 4 4.8 6.4 7.9 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7
400 16” 406.4 9.5 4.2 4.8 6.4 7.9 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5
450 18” 457.2 9.5 4.2 4.8 6.4 7.9 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2
500 20” 508 9.5 4.8 5.5 6.4 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50
550 22” 558.8 9.5 4.8 5.5 6.4 9.5 22.2 12.7 28.6 34.9 41.3 47.6 54
600 24” 609.6 9.5 5.5 6.4 6.4 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5
650 26” 660.4 9.5 7.9 13 12.7
700 28” 711.2 9.5 7.9 13 12.7
750 30” 762 9.5 6.4 7.9 7.9 13 12.7
800 32” 812.8 9.5 7.9 13 17.5 12.7
850 34” 863.6 9.5 7.9 13 17.5 12.7
900 36” 914.4 9.5 7.9 13 19.1 12.7

A106 Pipe Weight

ASTM A106 Grade B Pipe Weight
ASTM A106 Grade B Pipe Schedule Chart & ASTM A106 Grade B Pipe weight
Welded and seamless ASTM A106 Grade B Pipe

ASTM A106 Grade B Pipe Dimensions and weights section modulus and gallons capacity per linear foot

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule
Pipe #		 Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
    0.147 0.546 1.09 XHY 80 .0478 .0122
    0.188 0.464 1.31   160 .0528 .0088
    0.294 0.252 1.72 XXHY   .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
    0.154 0.742 1.48 XHY 80 .0853 .0225
    0.219 0.612 1.95   160 .1006 .0153
    0.308 0.434 2.44 XXHY   .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
    0.179 0.957 2.17 XHY 80 .1606 .0374
    0.250 0.815 2.85   160 .1904 .0271
    0.358 0.599 3.66 XXHY   .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
    0.191 1.278 3.00 XHY 80 .2913 .0666
    0.250 1.160 3.77   160 .3421 .0549
    0.382 0.896 5.22     .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
    0.200 1.500 3.63 XHY 80 .4118 .0918
    0.281 1.338 4.86   160 .5079 .0730
    0.400 1.100 6.41     .5977 .0494
2 2.375 0.109 2.157 2.64   10 .4205 .1898
    0.154 2.067 3.66 STD 40 .5606 .1743
    0.218 1.939 5.03 XHY 80 .7309 .1534
    0.250 1.875 5.68     .8045 .1434
    0.281 1.813 6.29     .8666 .1344
    0.344 1.687 7.47   160 .9806 .1161
    0.436 1.503 9.04 XXHY   1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53   10 .6870 .2833
    0.203 2.469 5.80 STD. 40 1.0640 .2487
    0.216 2.443 6.14     1.1169 .2435
    0.250 2.375 7.02     1.2468 .2301
    0.276 2.323 7.67 XHY 80 1.3386 .2202
    0.375 2.125 10.02   160 1.6371 .1842
    0.552 1.771 13.71 XXXHY   1.9971 .1280
3 3.50 0.120 3.260 4.34     1.0411 .4336
    0.156 3.188 5.58     1.3122 .4147
    0.172 3.156 6.12     1.4265 .4064
    0.188 3.124 6.66     1.5342 .3984
    0.216 3.068 7.58 STD. 40 1.7241 .3840
    0.250 3.000 8.69     1.9372 .3672
    0.281 2.938 9.67     2.1207 .3521
    0.300 2.900 10.26 XHY 80 2.2253 .3431
    0.438 2.624 14.34   160 2.8774 .2811
    0.600 2.300 18.6 XXHY   3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98   10 1.3776 .5768
    0.226 3.548 9.12 STD. 140 2.3939 .5136
    0.250 3.500 10.02     2.6001 .4998
    0.281 3.438 11.17     2.8562 .4821
    0.318 3.364 12.52 XHY 80 3.1400 .4617
    0.636 2..728 22.87 XXHY   4.8795 .3085
4 4.5 0.120 4.260 5.62   10 1.7612 .7404
    0.156 4.188 7.24     2.2354 .7156
    0.188 4.124 8.67     2.6296 .6942
    0.203 4.094 9.32     2.8173 .6838
    0.219 4.062 10.02     3.0184 .6725
    0.237 4.026 10.80 STD. 40 3.2145 .6613
    0.250 4.000 11.36     3.3611 .6528
    0.281 3.938 12.67   60 3.7021 .6326
    0.312 3.876 13.97     4.0273 .6126
    0.337 3.826 15.00 XHY 80 4.2713 .5972
    0.438 3.624 19.02   120 5.1790 .5361
    0.531 3.438 22.53   160 5.8997 .4822
    0.674 3.152 27.57 XXHY   6.7927 .4054
5 5.563 0.188 5.187 10.80     4.1161 1.0979
    0.219 5.125 12.51     4.7279 1.0716
    0.258 5.047 14.63 STD. 40 5.4500 1.0391
    0.281 5.001 15.87     5.8644 1.0204
    0.312 4.939 17.51     6.4074 .99647
    0.344 4.875 19.19     6.9358 .9696
    0.375 4.813 20.80 XHY 80 7.4300 .9449
    0.500 4.563 27.06   120 9.2534 .8495
    0.625 4.313 32.99   160 10.7976 .7590
    0.750 4.063 38.59 XXHY   12.0954 .6734
6 6.625 0.109 6.407 7.59   5 3.5769 1.6748
    0.134 6.357 9.30   10 4.3475 1.6488
    0.156 6.313 10.79     5.0107 1.6260
    0.188 6.249 12.94     5.9351 1.5937
    0.203 6.219 13.94     6.3804 1.5780
    0.219 6.187 15.00     6.8261 1.5620
    0.250 6.125 17.04     7.6905 1.5306
    0.280 6.065 18.99 STD. 40 8.4958 1.5008
    0.312 6.001 21.06     9.3416 1.4688
    0.344 5.937 23.10     10.111 1.4391
    0.375 5.875 25.05     10.893 1.4082
    0.432 5.761 28.60 XHY 80 12.224 1.3541
    0.500 5.625 32.74     13.711 1.2909
    0.562 5.501 36.43   120 14.9806 1.2346
    0.625 5.375 40.09     16.1821 1.1787
    0.719 5.187 45.39   160 17.8243 1.0977
    0.864 4.897 53.21 XXHY   20.025 .9784
    1.000 4.625 60.13     21.7719 .8727
    1.125 4.375 66.14     23.1237 .7809

ASTM A106 Grade B Pipe Stock

Here is a list of our complete stock of ASTM A106 Grade B Pipe

ASTM A106 Grade B Carbon Steel Welded Pipe Ready Stock Available for Oil & Gas Industry

ASTM A106 Grade B Carbon Steel Welded Pipe Ready Stock Available with supplementary tests/ HIC Test

  • A/SA106 Seamless Pipes
  • A106 STD Seamless Pipes
  • A106 XH Seamless Pipes
  • A106 XXH Seamless Pipes
  • ASME SA106 Seamless Pipes
  • Seamless carbon steel Seamless Pipes
  • high-temperature Seamless Pipes
  • A106 Grade A Seamless Pipes
  • A106 Grade B Seamless Pipes
  • A106 Grade C Seamless Pipes
  • A106 Hot-finished Seamless Pipes
  • A106 cold-drawn Seamless Pipes
  • 24” OD A 106 Seamless Pipes
  • 18” OD A 106 Seamless Pipes
  • 8” OD A 106 Seamless Pipes
  • 24” OD SA106 Seamless Pipes
  • 18” OD SA106 Seamless Pipes
  • 8” OD SA106 Seamless Pipes
  • ASTM A 106 grade B Seamless Pressure Pipes
  • ASTM A 106 grade A Seamless Pressure Pipes
  • ASTM A 106 grade C Seamless Pressure Pipes
  • ASTM A106 Seamless Pressure Pipes
  • ASME SA 106 grade B Seamless Pressure Pipes
  • ASME SA 106 grade A Seamless Pressure Pipes
  • ASME SA 106 grade C Seamless Pressure Pipes
  • A106 Seamless Pipe
  • A/SA106 Seamless Pipe
  • A106 STD Seamless Pipe
  • A106 XH Seamless Pipe
  • A106 XXH Seamless Pipe
  • ASME SA106 Seamless Pipe
  • seamless carbon steel Seamless Pipe
  • A106 cold-drawn Seamless Pipe
  • a106 grado b
  • ASTM S/A 106 Carbon Steel Pipe & Tube
  • ASTM A106 Gr.B Pipes SAW
  • ASTM A106 Gr.B Pipes Boiler
  • ASTM A106 Gr.B Pipes Nippon Steel & Sumitomo
  • ASTM A106 Gr.B Pipes SCH STD
  • ASTM A106 Gr.B Pipes SCH 40
  • ASTM A106 Gr.B Pipes SCH 20
  • ASTM A106 Gr.B Pipes SCH XS
  • ASTM A106 Gr.B Pipes SCH 80
  • ASTM A106 Gr.B Pipes SCH 160
  • ASTM A106 Gr.B Pipes SCH XXS
  • ASTM A106 Gr.B Pipes Nace
  • ASTM A106 Gr.B Pipes for Petrochemical
  • ASTM A106 Gr.B Pipes for Oil Drilling & Exploration
  • ASTM A106 Gr.B Tubing
  • 1.0425 seamless pipe Europe/ Germany make
  • ASTM A106 Gr.B SMLS Pipe
  • IBR approved ASTM A106 Gr.B Pipes suppliers
  • ASTM A106 Gr.B HIC Tested
  • ASTM A106 Gr.B Pipes LSAW Welded
  • ASTM A106 GR-B,SEAMLESS
  • ASTM A106 Steel Forged Tube Grade B
  • ASTM A106 GR C standard steel tube
  • A106 1/2\” SCH 80 GRADE C STEEL PIPE
  • CS Seamless pipe conforming to ASTM A106, Sch. 40
  • SCH 40 A106 Gr B
  • A106 grade B carbon steel Schedule 40 pipe
  • ASTM A106 seamless mild steel pipes schedule 40 pipes
  • A106 Gr.B seamless pipes
  • Low Carbon Steel Pipe (Seamless)
  • Sch.40 A106 GrB ERW & Seamless pipe
  • A106, GRADE – B, SCH-XS/80
  • CS ASTM A106 Grade B Carbon Steel Welded Pipe sembless,Bevel end
  • Sch80 Cs seamless pipe ASTM A106 GR-B
  • Carbon Steel pipes for high-temperature service Geade A106 B Schedule 40
  • ASTM A53/A106 Grade B
  • tubo astm a106 gr b
  • ASTM A106 Gr.B Pipes IBR
  • ASTM A106 Gr.B Pipes Seamless
  • ASTM A106 Gr.B Pipes Welded
  • ASTM A106 Gr.B Pipes Grade A
  • ASTM A106 Gr.B Pipes Grade B
  • ASTM A106 Gr.B Pipes Sour Service Line Pipes
  • ASTM A106 Gr.B Pipes for Oil and Gas
  • ASTM A106 Gr.B Pipes NACE MR-0175 Line Pipes
  • ASTM A106 Gr.B Line Pipes
  • ASTM A106 Gr.B Pipes SSAW (Spiral Welded)
  • ASTM A106 Gr.B Pipes EFW
  • ASTM A106 Gr.B Pipes ERW
  • ASTM A106 Gr.B Pipes HSAW
  • ASTM A106 Gr.B Pipes LSAW
  • ASTM A106 Gr.B Pipes for Rigs
  • ASTM A106 Gr.B Pipes for CBM Field
  • ASTM A106 Gr.B Tubería
  • ASTM A106 Gr.B tubular
  • ASME SA106 Grade B seamless pipe
  • P265GH Grade B seamless pipe
  • ASTM A106 Gr.B seamless carbon steel pipes for high-temperature service
  • PN-EN 10216-2, DIN 17175 Boiler tubes/ Pipe
  • A106 Gr. B Boiler Pipes/ Tubes
  • ASTM A106 Grade B High Yield Seamless Pipes
  • ASTM A106 Grade B High Yield SAWWelded Pipes
  • ASTM A106 40 bars pipeline
  • 50 NB ASTM A106 Pipe
  • Pipe ASTM A106 GRB,SCH40
  • Sch80 Seamless pipe for ASTM A106 Gr-B
  • A106B seamless tubes
  • ASTM A106 Gr B DN50 schedule 40 pipe
  • CARBON STEEL ASTM A106 GRADE B
  • CS PIPE SCH 40 ASTM A106
  • A106 grade B steel seamless pipe
  • A106 grade B Pipe JFE STEEL
  • NKK A106 grade B Pipe
  • Sch40 Cs seamless pipe ASTM A106 GR-B
  • A106-B GALV SMLS NPT ASME-B36.10M SCH80 Pipe
  • a106 gr b
  • astm a106 b
  • astm a106 grado b tubo
  • acero a106 grado b
  • a106 gr b chemical composition
  • A106 Seamless Carbon Steel Pipe
  • a106 b
  • a a106 gr b

A106 Pipe Chemical Composition

ASTM A106 Grade B Chemical Properties

Grade A Grade B Grade C
Carbon max. % 0.25 0.30 0.35
Manganese % 0.27 to 0.93 0.29 to 1.06 0.29 to 1.06
Phosporous, max. % 0.025 0.025 0.025
Sulfur, max. % 0.025 0.025 0.025
Silicon, min. % 0.10 0.10 0.10

ASTM A106 Seamless Pressure Pipe

Mechanical Properties

ASTM A106 grade b yield strength

ASTM A106 Grade A ASTM A106 Grade B ASTM A106 Grade C
ASTM A106 Tenside strength, min, psi (MPa) 48000(330) 60000(415) 70000(485)
Yield strength, min, psi (MPa) 30000(205) 35000(240) 40000(275)
Seamless Grade A Grade B Grade C
Tensile Strength, min., psi 48,000 60,000 70,000
Yield Strength, min., psi 30,000 35,000 40,000

ASTM A106 Seamless Pressure Pipe

No hardness specifiec in SA-106. A106 don’t have an imposed Brinell test value but approx 110-150 usually on new pipe A106 grade B. Grade A234 WPB is made from A106 grade B and have an imposed value of 197 HB maximum

A106 Pipe vs A333 / A106 Pipe vs A53

DIFFERENCES IN CHEMICAL COMPOSITION

Standard Grade Chemical Composition %
C Mn P S Si Cr Cu Ni Mo V
ASTM A106 B ≤0.30 0.29-1.06 ≤0.035 ≤0.035 >0.10 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08
ASTM A53 B ≤0.30 ≤1.20 ≤0.05 ≤0.045 – ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08
API 5L B(PSL-1) ≤0.28 ≤1.20 ≤0.030 ≤0.030 – – – – – –
DIN 1629,
DIN 2448		 St 37.0 ≤0.17 – ≤0.040 ≤0.040 – – – – – –
St 44.0 ≤0.21 – ≤0.040 ≤0.040 – – – – – –
EN10210 S235JRH ≤0.17 ≤1.40 ≤0.040 ≤0.040 – – – – – –
GB/T8163,
GB/T8162		 10# 0.07-0.13 0.35-0.65 ≤0.035 ≤0.035 0.07-0.37 ≤0.15 ≤0.25 ≤0.30 – –
20# 0.17-0.23 0.35-0.65 ≤0.035 ≤0.035 0.17-0.37 ≤0.25 ≤0.25 ≤0.30 – –

DIFFERENCES IN MECHANICAL PROPERTIES

Standard Grade Tensile Strength
(MPa)		 Yield Strength
(MPa)		 Trans.Elongation
(%)		 Impact Test
(J)
ASTM A106 B >415 ≥240 ≥16.5 –
ASTM A53 B >415 ≥240 – –
API 5L B(PSL-1) >414 ≥241 As clause a –
DIN 1629 St 37.0 350-480 ≥235 ≥23 –
DIN 2448 St 44.0 420-550 ≥275 ≥19 –
EN10210 S235JRH 360-510 ≥235 ≥26 27 (+20°C)
GB/T 8163 10# 335-475 ≥205 ≥24 –
GB/T 8162 20# 410-550 ≥245 ≥20 –

ASTM A53 grade a vs b

A53 Pipe vs A106 Pipe – (1) Scope

ASTM A53 is Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless.
ASTM A106 is Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service.

A53 Pipe vs A106 Pipe – (2) Applied Type of Pipe

A 53 can be welded seam or seamless depending on how it is specificed for purchase. It is a general steel pipe spec and covers galvanized pipe as well as black pipe.
A106 is a similar pipe in chemical composition but is intened for high temperature service (up to 750 Degs F). It is a seamless pipe.
At least in the US, there is usually A53 for welded pipe while A106 is seamless. If you ask for A53 in the US they will quote A106 as an alternate.

A53 Pipe vs A106 Pipe – (3) Chemical Composition

For example when we compare between A106-B and A53-B seamless from chemical composition point of view, we find that :
1. A106-B contains silicon, min. 0.10% where A53-B has zero%, and silicon is the important element for improving the heat resistance criteria.
2. A106-B contains manganese 0.29-1.06%, where A53-B 1.2%.
3. A106-B contains low sulfur and phosphorus, max. 0.035% where A53-B contains 0.05 and 0.045% respectively.

A53 Pipe vs A106 Pipe – (4) Mechanical Properties

Spec Mechanical Properties
Grade A Grade B Grade C
ASTM A53 Tenside strength, min, psi (MPa) 48000(330) 60000(415)
Yield strength, min, psi (MPa) 30000(205) 35000(240)
ASTM A106 Tenside strength, min, psi (MPa) 48000(330) 60000(415) 70000(485)
Yield strength, min, psi (MPa) 30000(205) 35000(240) 40000(275)

Leading Manufacturers of A106 Pipe

  • Arcelormittal
  • Sumitomo
  • Nippon Steel & Sumitomo Metal
  • Tubacex
  • JFE Steel Corporation
  • Jindal Saw Ltd.
  • Mukat Tanks & Vessel Ltd
  • Welspun
  • Dalmine
  • Maharashtra Seamless Limited
  • U. S. Steel Tubular
