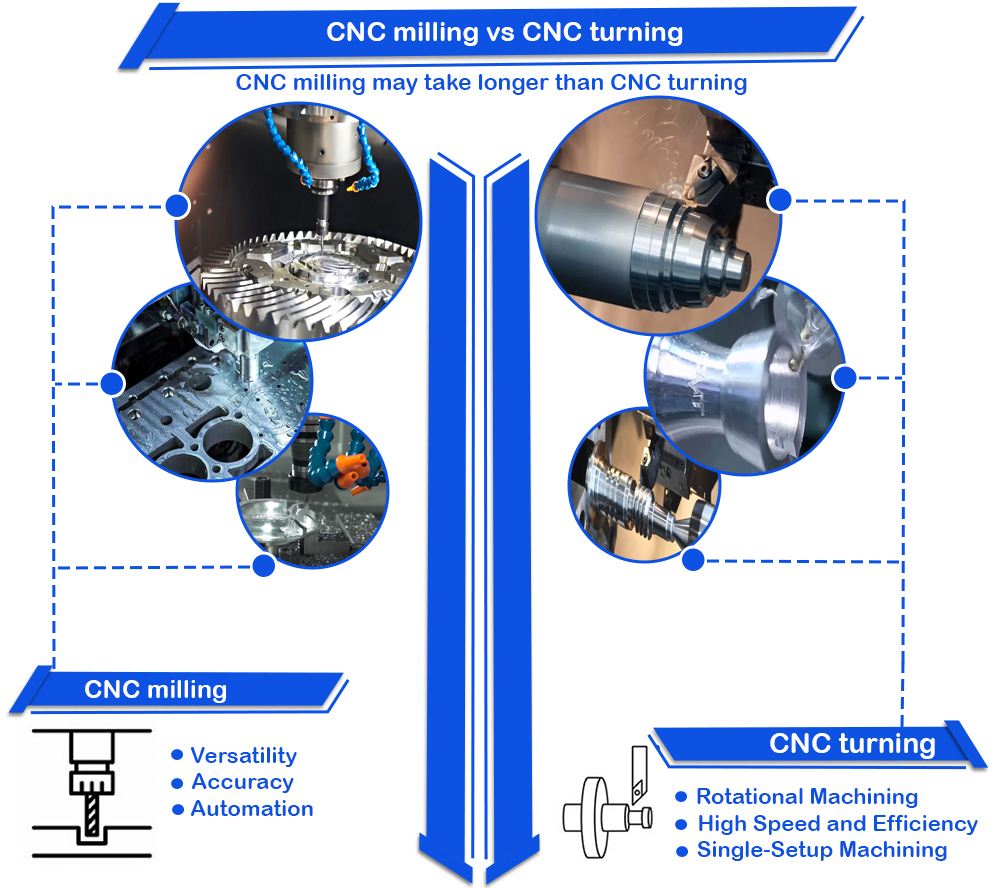

CNC Milling Vs CNC Turning

In CNC turning, the key difference is that the material being worked on rotates while the cutting tool remains stationary. This setup allows the tool to shape the material into the desired component as it rotates. Often, a chuck holds the material securely in place during this process. Facilities that handle high volumes or require additional machining capabilities might utilize a turret for efficient tool changes. Moreover, some advanced setups incorporate a sub-spindle, which enhances productivity by enabling the machining of both ends of the material without manual intervention. This methodical approach ensures that CNC turning achieves precise and repeatable results, making it a preferred choice in industries like automotive, fabrication, and electronics for producing various components efficiently.

Surface Type:

Milling is best for flat and irregular surfaces while turning works on cylindrical or conical shapes.

Continuity:

Turning cuts continuously, while milling tools engage and disengage periodically.

Material Wastage:

Turning wastes more material compared to milling.

Versatility:

Turning suits symmetrical shapes like shafts and cylinders, while milling is versatile for various processes.

Material Removal Rate (MRR):

Milling is generally slower than turning in removing material.

Cost & Efficiency:

Turning is cheaper initially but gets costly with larger volumes.

Volume & Prototyping:

Milling is better for large-scale production; turning is good for prototypes and specialized parts.

Application:

Milling is used for fittings, gears, etc.; turning is for ball joints, nozzles, etc.

Tooling:

Milling uses tools with multiple cutting points; turning uses tools with a single cutting point.

Setup Time:

Turning requires less setup time compared to milling.

Tolerances:

Turning can achieve tighter tolerances for accuracy.

Surface Finish (Ra):

Turning produces a smoother finish due to continuous rotation; milling can leave distinct tool patterns.

What are the common challenges and solutions in CNC milling?

CNC milling and CNC turning are quite different, but each has its own unique benefits.

CNC Milling:

CNC milling uses multi-point cutting tools to shape materials into complex forms. It’s known for its precision, speed, and efficiency. This method is versatile and can handle various materials. For lower production volumes, it can be cost-effective.

CNC Turning:

CNC turning is used to create round shapes that are difficult to achieve with milling. It’s great for making cylindrical or round parts quickly and accurately. You can also use it for making polygonal shapes using rotating tools. CNC turning provides a smooth surface finish, which can be as fine as 32Ra with additional processes like grinding, heat treatment, or passivation. In summary, CNC milling is ideal for intricate shapes and versatility, while CNC turning excels in creating round parts and achieving smooth finishes quickly. Both methods are crucial in manufacturing different types of parts and applications.

Is there any difference in tolerances and precision?

CNC turning and milling are ways to shape metal with precision. Turning is great for making round parts by spinning them against a cutting tool. It’s really accurate, with measurements accurate to about 0.001 inches. Turning works well for making holes that need to be just the right size in places where precision matters a lot. With turning, you can adjust how fast the part spins and how fast the tool cuts, so you can get exactly the size you need. For really precise work, you might spin the part fast and cut slowly.

CNC turning & milling cost estimation. What are the 4 cost reduction tips?

CNC machining costs depend on how complex the part is and how long it takes to make.

Use fillets and undercuts:

Adding rounded edges (fillets) to straight edges allows for faster machining with larger tools. For sharp inside corners, use undercuts.

Minimize machine setups:

Setting up the machine multiple times adds labor and costs. Multi-axis machines can speed up production, but they are more expensive. Sometimes it’s better to split the part into simpler shapes and assemble them later.

Measure speed and feed rate carefully:

It’s crucial to get these settings right to avoid mistakes that can waste materials and money.

Choose cost-effective materials:

Compare prices from different suppliers to find affordable materials. This helps manage costs.

Combine CNC processes:

For parts that are round with some uneven features, you can first use CNC milling and then turning. If the part is too large for CNC, consider other methods like die casting or injection molding.
